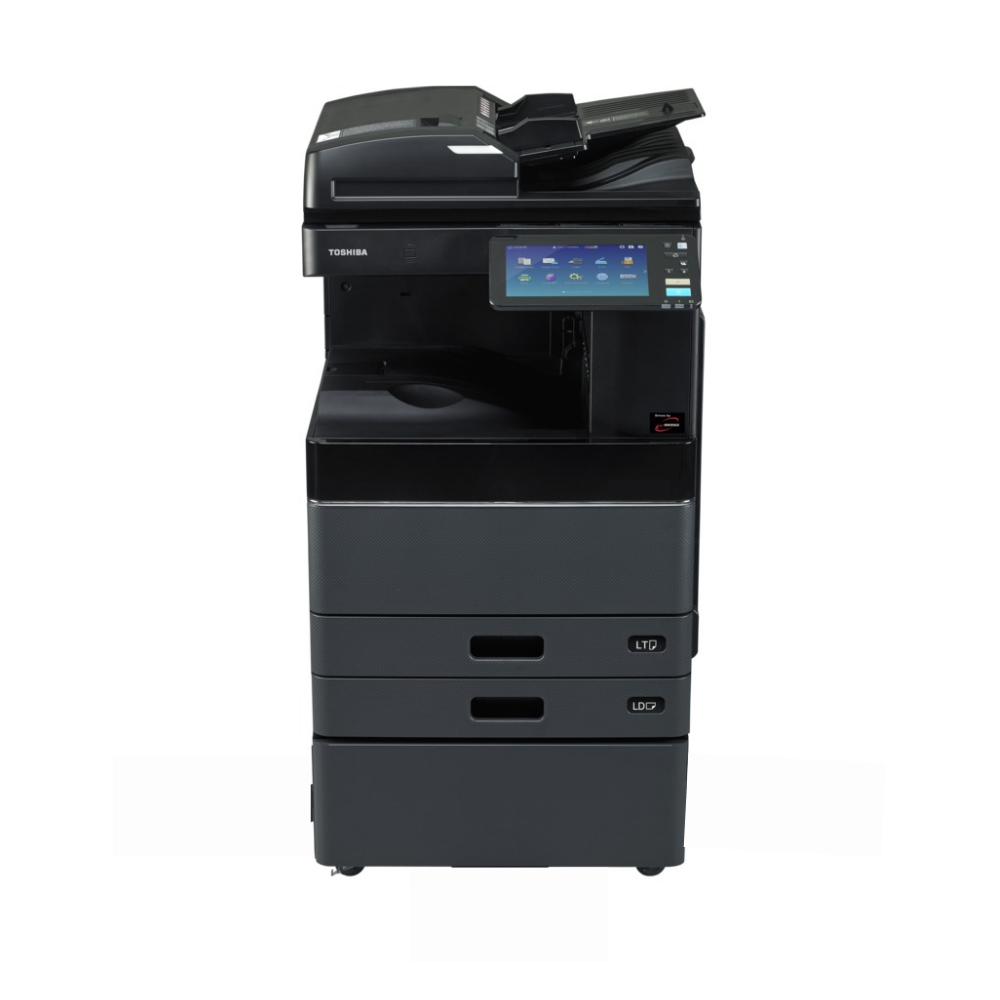

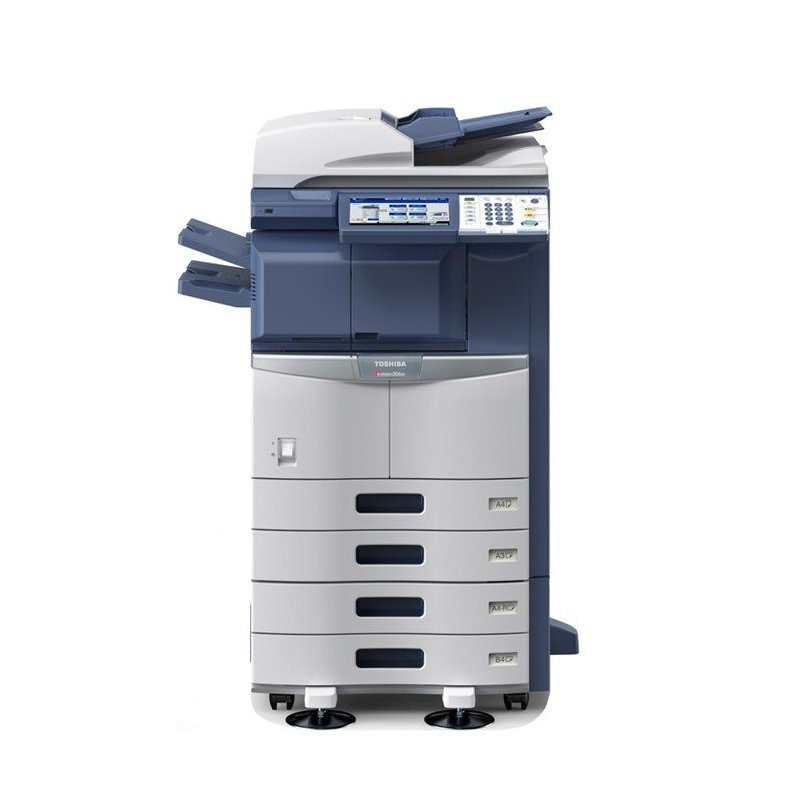

| GENERAL
|
| Print & Copy Speed |
25 ppm (A4), 16 ppm (A3) |
| Warm-Up Time |
Approx. 20 seconds |
| Paper Size & Weight |
Cassettes: A5R-A3, 64-105 g/m²
Large Capacity Feeder*: A4, 64-105 g/m²
Bypass: A5R-A3, 52-209 g/m² |
| Paper Capacity |
2 x 550 sheets (Cassettes), 100 sheets (Bypass)
Max. 3,200 sheets |
| Automatic Duplex |
A5R-A3, 64-105 g/m² |
| Controller Type |
Toshiba e-BRIDGE |
| Control Panel |
9″ (22.8 cm) color touch panel LCD |
| Memory |
Toshiba Secure HDD 320 GB** / 2 GB RAM |
| Interface |
10/100/1000 BaseT (incl. IPv6), High Speed USB 2.0, WLAN* (IEEE802.11b/g/n) |
| Dimensions & Weight |
575 x 586 x 756 mm (W x D x H), ~ 55 kg |
| PRINT |
| Resolution |
600 x 600 dpi
2,400 x 600 dpi with smoothing |
| Page Description Languages |
XPS, PCL6 and PostScript 3 compatible |
| Supported Systems |
Windows 8/7/Vista/Server 2008/Server 2003 (32/64 bit), Windows Server 2012 R2/Server 2008 R2 (64 bit), Mac OS 10.4.11 – 10.9, Linux/UNIX, Novell NetWare (NDPS), Citrix, SAP, AS/400 |
| Print Functions |
Universal Driver, Driver templates, Driver plug-ins*, Hold print, Print from USB Tandem printing, AirPrint |
| SCAN |
| Resolution |
Max. 600 x 600 dpi, 8 bit per color channel |
| Scan Speed |
Color/B&W: 43/57 ipm (300 dpi) |
| Scan Modes |
Auto-Color (ACS), Color, Greyscale, B&W |
| File Formats |
JPEG, Multi/Single Page TIFF/XPS/PDF, Secure PDF, Slim PDF, Searchable PDF* (and other formats like DOCX, XLSX, RTF, TXT, PDF/A)* |
| Scan Functions |
Web Scan (pull/push), Scan to USB, Scan to E-Mail, Scan to File (SMB, FTP, FTPS, IPX/SPX, local ), Meta Scan*, Scan to Box (e-Filing), WIA, TWAIN |
| COPY |
| Resolution |
Scan: 600 x 600 dpi
Print: 2,400 x 600 dpi with smoothing |
| First Print Output Time |
Approx. 4.7 seconds |
| Zoom |
25-400% (platen), 25-200% (RADF)* |
| Copy Modes |
Text, Text/Photo, Photo, Color Document, Custom |
| FAX – Optional |
| Communication |
Super G3, G3 – (opt. 2nd line), Internet Fax T.37 |
| Transmission Speed |
Approx. 3 seconds per page |
| Compression |
JBIG, MMR, MR, MH |
| Fax Memory |
1 GB (HDD) Transmission/Reception |
| Network-Fax |
Driver for Windows 8/7/Vista (32/64 bit), Windows Server 2012 R2/Server 2008 R2 (64 bit) |
| Incoming Fax Routing |
To shared folder (SMB, FTP, IPX/SPX), E-Mail, e-Filing |
| SYSTEM & SECURITY |
| Device Management |
e-BRIDGE Fleet Management System*, TopAccess remote administration and configuration |
| System Features |
e-Filing document server for secure storage, document distribution and Print-on-Demand (1 public box, 200 user boxes), 12,060 One-touch Templates for storage of personalised settings or workflows, Scan/Fax preview, e-BRIDGE Open Platform*, Embedded Web Browser, Job Skip |
| Accounting & Security |
Role Based Access, LDAP support, 1,000 department codes & 10,000 user codes, card reader*, private print, standard data encryption with Toshiba Secure HDD, Data Overwrite Enabler*, IP and MAC address filter, port filter, support of SSL and IPSec* protocols, IEEE802.1x support, IEEE2600.1 compliant*, Scan to Secure PDF |
